..with Blend & Master Volume - For Bass & Guitar
FUZZROCITY circuit with additional controls aimed primarily for BASS Guitar, but gives loads of different tonal flavors for electric guitars too.
To keep things consistent pedal uses NPN Silicon transistors.
Fuzzrocity Amalgam delivers wide variety of tonal flavors from Crushing Fuzz to Transparent Overdrive. Due to added Hi-Pass Filter & Pre-Gain controls you can keep things nice and tight when required. And as pedal is equipped with BLEND control you can make sure that low-end will stay intact.
With extreme settings you can get this beast to give you some synth style tones too!
Other than buffered signal chain and added Blend control this is similar to standard Fuzzrocity Guitar version with some small tweaks to values.
Controls:
BIAS - Set operating voltage. From Gated to Furry Fuzz tones
HPF - Hi-Pass Filter a.k.a. Bass Cut.
Counterclock-wise you have full signal entering to the fuzz circuit like in standard Fuzz Face pedal.
Hi-Pass Filter is placed before fuzz circuit to keep things nice and tight when required so.
FUR - Controls input signal hitting the fuzz circuit. Offers tones from overdrive to Fur(r)y Fuzz.
FUZZ - Controls the output volume of Fuzz Circuit
Pls note: When Fuzz pot is fully counter-clockwise it is unity with the clean tone when blend is in 12 o´clock.
BLEND - Blends between Fuzz & Clean Tone
LEVEL - Master Volume

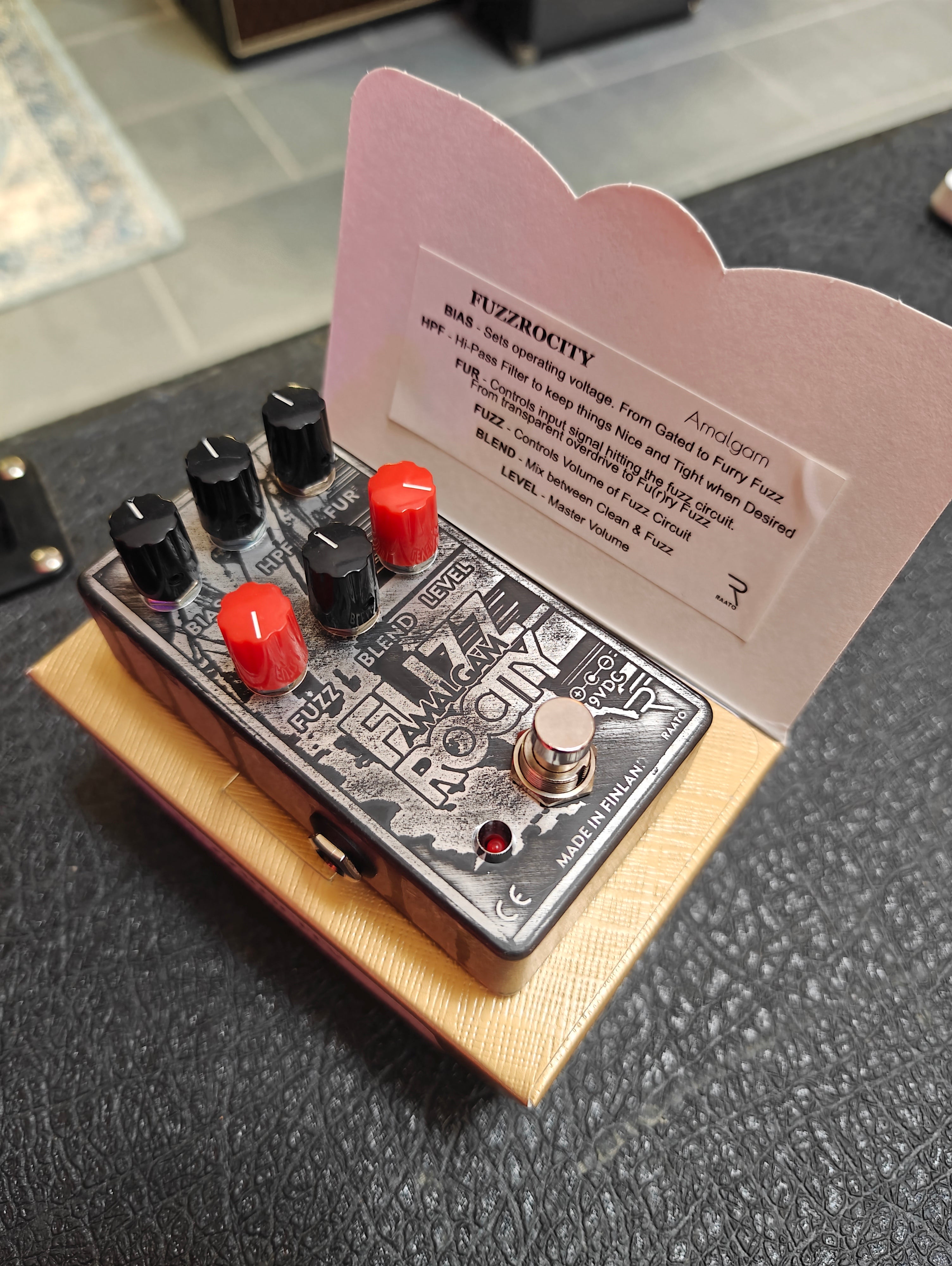

Enclosure is etched and will be slightly different from the sides and back than in pictures.
Power: 9V DC Center negative
Pedal can be powered from standard pedal power supplies
