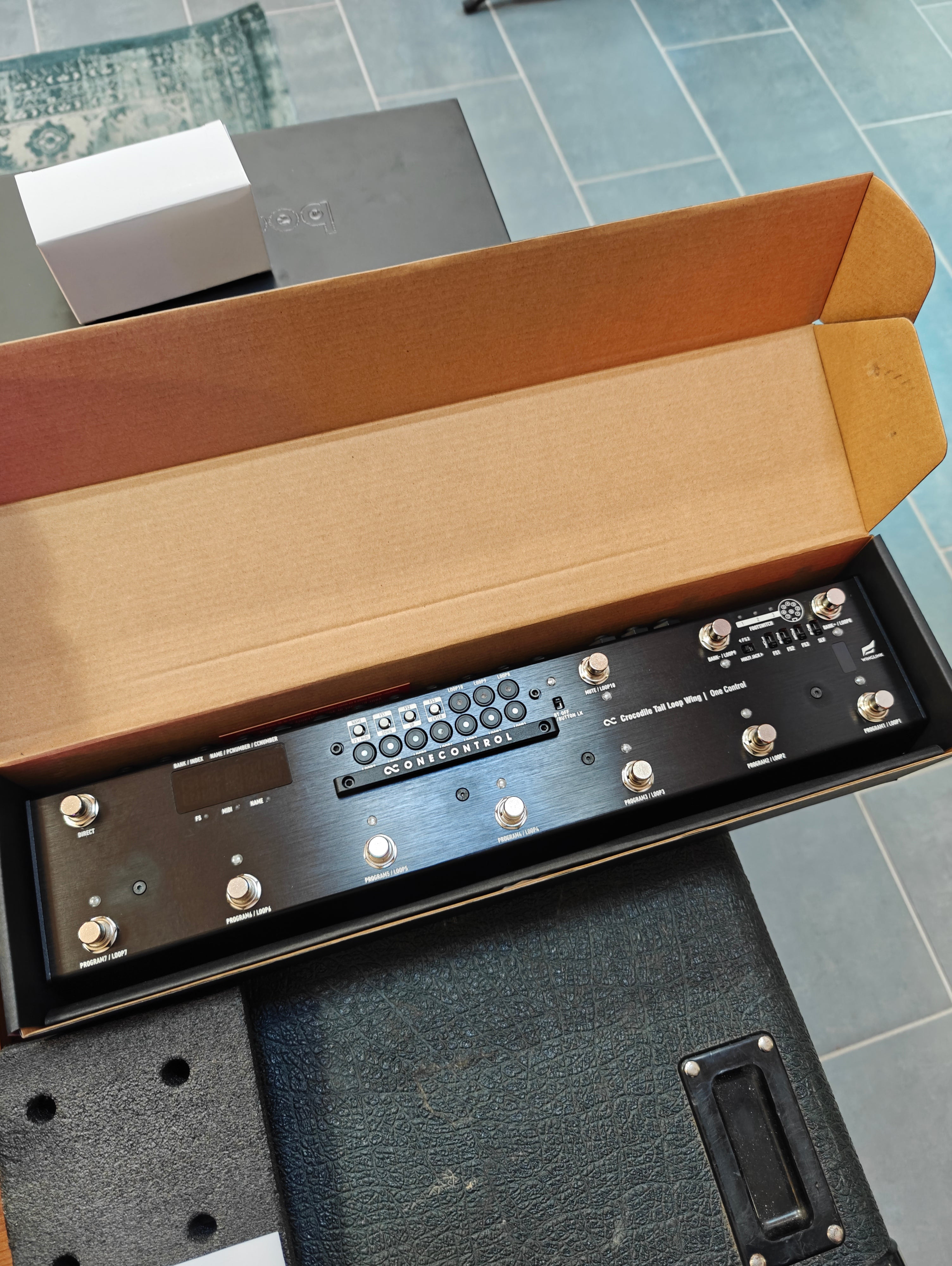

Programmable 10-channel true bypass loop switcher for effects pedals.
- Footswitches provide control over 10 independent loops and a separate tuner output
- Extremely simple and intuitive programming
- Winglink iOS app for programming and remote control
- 168 Freely configurable presets - 24 banks, 7 presets per bank
- 2 Selectable switching modes: Program Mode, Direct Mode
- Integrated BJF buffer circuit with separate inputs and outputs
- 7 Serial loops and 3 separate loops
- 3 Separate footswitch connections and an 8-pin DIN connector can be used as an amp footswitch
- Fully MIDI-capable with MIDI Out and MIDI In
- True Bypass
- 11 Footswitches: PGM1/L1, PGM2/L2, PGM3/L3, PGM4/L4, PGM5/L5, PGM6/L6, PGM7/L7, Bank Up/L8, Bank Dn/L9, Mute/L10, Direct
- 10 Keyswitches for programming the presets
- 5 Switches control the footswitch connections
- 4 Multi-function footswitches
- Bluetooth on/off switch
- Status LEDs
- Metal housing
- 6.3 mm Mono jack inputs / outputs
- 5-Pin MIDI input / output
- Power supply via 9V DC power supply unit with 2.1 x 5.5 mm barrel connector, polarity (-) inside (not included in delivery)
- Power consumption: max. 400 mA
- Dimensions (L x W x H): 100 x 440 x 64 mm
- Weight: 1.34 kg
