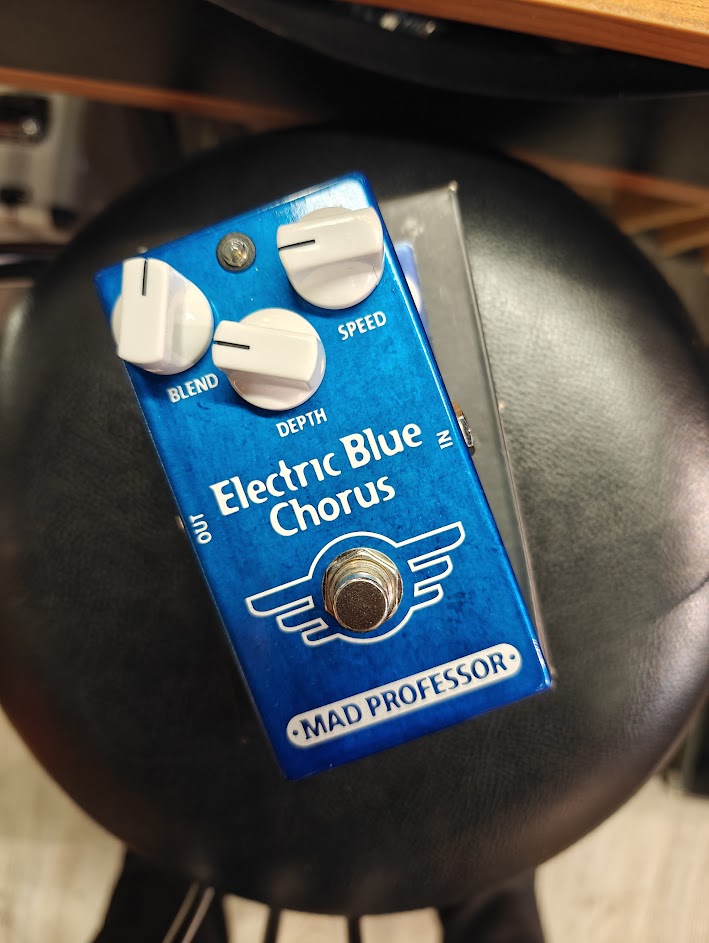

Mad Professor Electric Blue Chorus

The EBC was designed to be used with both clean and distorted tones and works equally well both in front of or after a distortion pedal.

CONTROLS:

BLEND: This is a control for setting the mix of the modulated and the dry sound. Turn it up for a more intense effect.

DEPTH: This a control for setting modulation depth. Turn it up for a deeper effect.

SPEED: This is a control for setting the speed of the internal oscillator.

TECHNICAL SPECIFICATION:

Power requirements: 6F22 9V battery or DC eliminator 2.1 mm plug center negative and positive sleeve.

Current consumption: 40 mA at 9VDC

Supply voltage range: 9-12V

Input impedance: 400k Ohms

Output impedance: 2k Ohms

True Bypass
