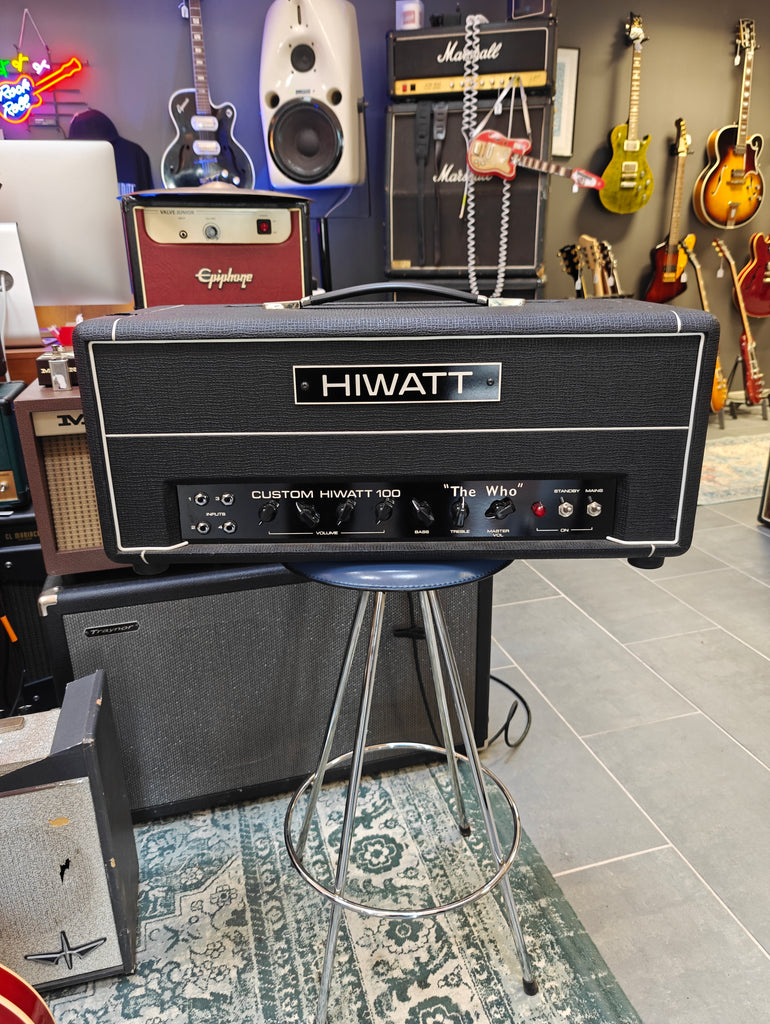

Designed to the same specifications as the amp used extensively by Pete Townshend of The Who. Based on the Custom 100, the CP-103 features more gain and a more responsive Bass and Treble control network. Uses 4 independent preamp channels (with 4 x ECC-83 tubes), 4 individual Volume Controls and a Master Volume. Power stage uses 4 x EL-34 tubes. Equipped with Partridge transformers, and has switchable 4-, 8-, and 16-ohm output impedance.

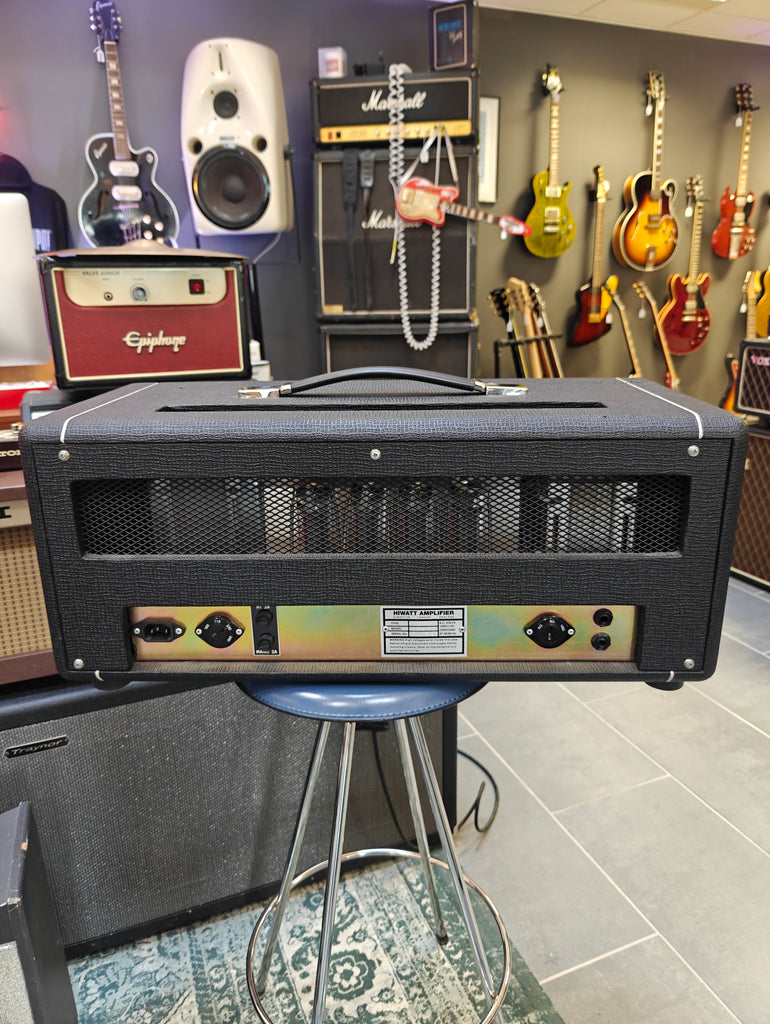

A look inside the amplifier will reveal point- to-point hand wiring, turret tag boards (no printed circuits), and hand laced wiring harnesses. The power and output transformers are manufactured by Partridge, the original 1970s supplier to the original design sheets. The components and wires are the modern available equivalents of the vintage components, one-watt carbon resistors, and wound polyester capacitors being used throughout.
FEATURES
- Power: 4 x EL-34 tubes
- Preamp: 4 x ECC-83 tubes
- 100W
- Dual channel: normal and bright
- Adjustable 4, 8 & 16 ohm output impedance
- Low and High sensitivity inputs
- Individual channel volume
- 3-band EQ
- Custom made face plate with "The Who" -graphics
